USE:

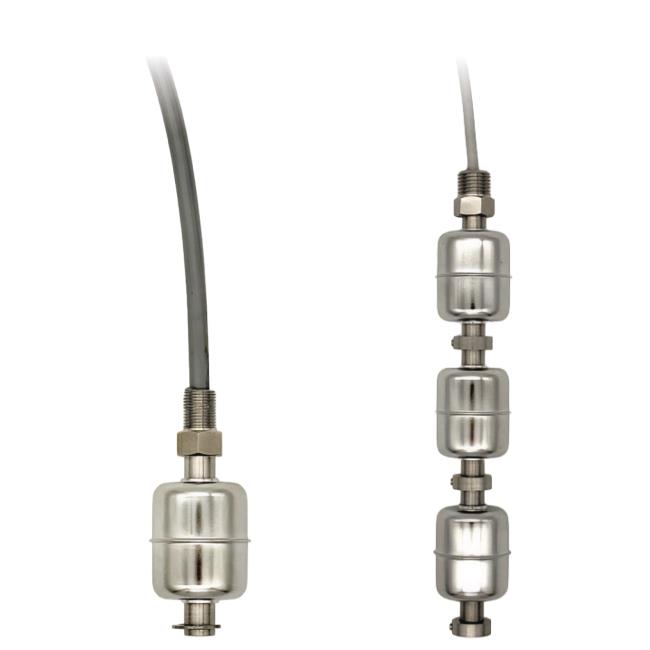

Built to ensure 1 or more liquid controls in tanks.
Suitable for tanks containing liquids compatible with stainless steel, such as hydraulic or lubricating oils (provided their density does not exceed 220 cSt), petroleum, etc.
OPERATION:
When the indicator float in its stroke meets the Reed switch incorporated in the pre-established point, the contact, stimulated by the magnet housed in the float, switches, thus having the possibility of remotely sending a luminous or acoustic reminder signal or activating or interrupting any electrical equipment connected to it.
ASSEMBLY:
The indicator must be mounted in a vertical position, with the warning that the floats are at least 35mm away from ferrous surfaces (walls, tanks, etc.).
Installation is done from inside the tank; the cable outlet can be useful to overcome any problems that may arise with the use of connectors (vapours, humidity, splashes, etc.)
WARNINGS:
To reverse the nature of the contact, simply turn the float upside down.
Maximum operating pressure: 10 Bar
