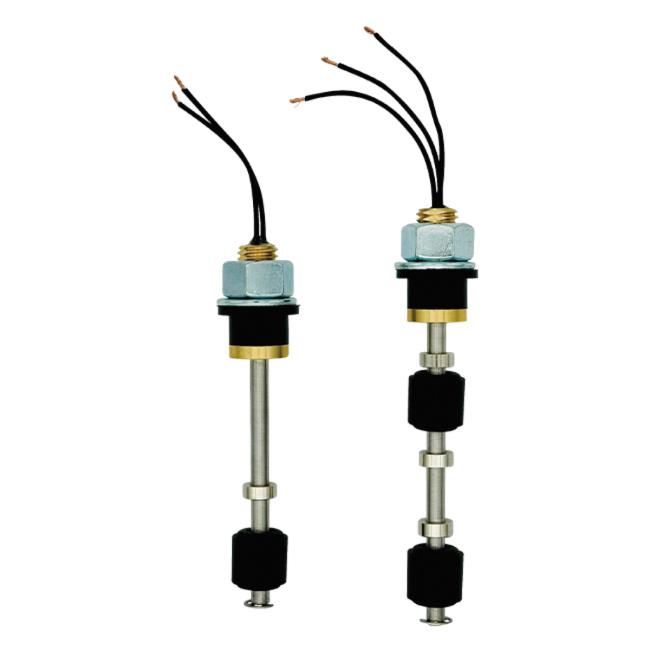

IEG-E23

Electromagnetic level indicators with one or two contacts with 23 expansion connection

Material
Brass/Stainless steel
Output
on/off
Threaded connections
Expansion - Diameter 23

USE:
Built to guarantee the minimum or maximum level of liquids in tanks, hydraulic power units containing mineral oils with a viscosity not exceeding 220 cSt; also suitable for diesel and other non-corrosive and flammable liquids.

OPERATION:
When the float, in its travel, meets the built-in Reed switch at the pre-established point, the contact, stimulated by the magnet housed in the float, opens or closes, thus having the possibility of remotely sending a luminous, acoustic recall signal or activate or interrupt any electrical equipment connected to it.

ASSEMBLY:
The indicator must be mounted in vertical position, in a Ø23mm hole; the seal is guaranteed by an NBR expansion gasket. The float must be at least 35 mm away from ferrous surfaces (tank walls, etc.).

WARNING:
To reverse the N.C. contact and N.O. just remove the lower stop and turn the float upside down.
